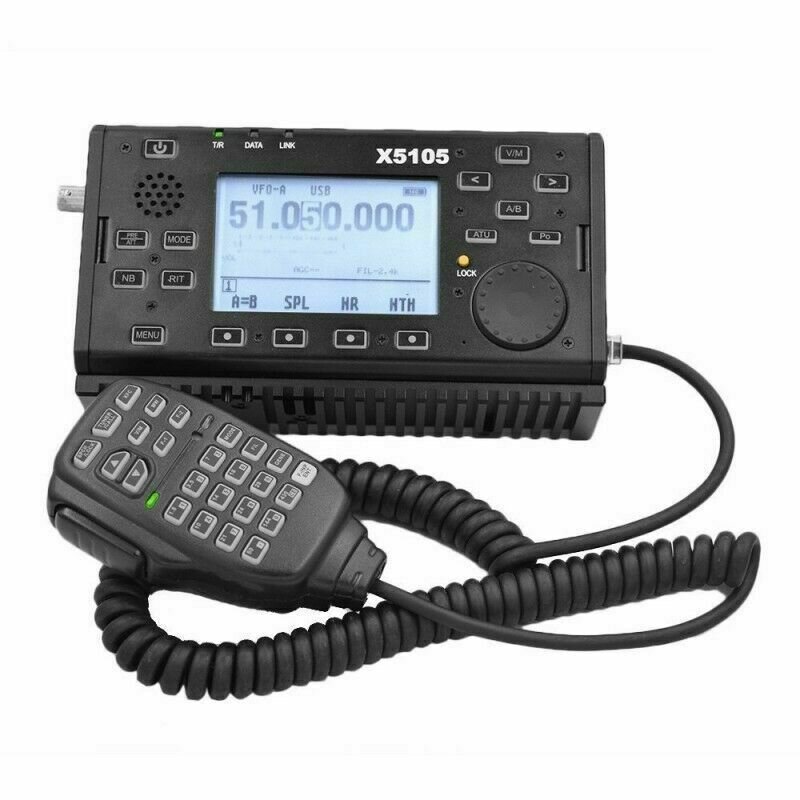

EMISORAS CAZA Transceptor HF+50 XIEGU X5105

Store / CAZA

€649.99

Price incl. VAT (19%) €103.78

Estimated delivery time

Shipping: 12–17 days

In stock

Product Details

Frecuencia: 500Khz-30Mhz y 50-54Mhz TX/RX.

Modos: CW–AM–FM-USB-LSB.
Peso: 830 gramos.
Incorpora en su interior batería de Litio de 3800mAh.
Incorpora acoplador de antenas automático.

Especificaciones:
Battery capacity	3800mAh @12V
Operating temperature range	-10℃ ～ +60℃
Working voltage	Supply voltage: normal: 13.8VDC + 15%, negative grounding Operating voltage: 9.0-15.0VDC, negative grounding
Antenna impedance	50Ω (BNC)
Maximum output power	5W(SSB/CW/FM)，1.5W(AM carrier)， @13.8VDC
Modes	SSB/CW/AM/FM/FSK
Current parameters	Receive: 660mA@ Max Transmit: 2.5A@ Max
Emission current	2.5A@ Max
Transmitting Parameters
FM Maximum frequency swing	±5kHz
Microphone impedance	200-10k(conventional 600Ω)
Modulation mode	SSB balanced modulation AM low level amplitude modulation FM Variable reactance frequency modulation
Sideband spurious	50dB
Sideband spurious	400Hz-2800Hz（-6dB）
spur reduction	-45dB
Receiving Parameters
Audio output	0.6W （8Ω，≤10% THD）
Audio output impedance	4 – 16Ω
Circuit type	double frequency conversion superheterodyne + audio DSP
If Rejection	60dB
Image rejection	70dB
Selectivity	SSB： -6dB:2.4kHz/-60dB:4.6kHz; CW： -6dB:500Hz/-60dB:2000Hz; AM： -6dB:6.0kHz/-60dB:25.0kHz; FM： -6dB:12.0kHz/-60dB:25.0kHz.
Receiver Features
IF frequency	first IF: 70.455MHz； second IF: 10.695MHz； third IF: 455kHz（FM).
Technical
Receive frequency range	500kHz-30MHz；50MHz-54MHz
Transmit frequency range	160 meters -6 meters (Amateur band only)
Frequency stability	after turn on the radio 1-60 minutes is ± 2ppm,@25℃：1ppm/hour
Carrier suppression	＞40dB
Receiver sensitivity	500kHz-1.8MHz ：SSB/CW / ， AM =10uV， FM /； 1.8MHz-28MHz： SSB/CW=0.25uV， AM = 2uV， FM /； 28MHz-30MHz： SSB/CW=0.25uV， AM =2uV， FM=0.35uV； 50MHz-54MHz： SSB/CW=0.25uV， AM =2uV， FM=0.35uV； (PRE=on，ATT=off，NB=off，NR=off，SSB/CW/AM = 10dB S/N，FM = 12dB SINAD)
Antenna impedance	50Ω
Mini Frequency step	1Hz
Product specifications
Overall size	*16010046mm*
Weight	0.94Kg
